Geiger Counter Radiation Detector GM-10

Overview of GM Radiation Detector GM-10

The Geiger Counter Radiation Detector GM-10 from AETEC is an advanced microcontroller-based radiation counting instrument designed for accurate beta and gamma radiation measurement. It helps laboratories, colleges, research institutes and training centres perform Geiger Muller counting, radiation monitoring, CPS/CPM measurement and stored data analysis.

Additionally, the GM-10 works as a reliable laboratory device for nuclear physics experiments, health physics laboratories, environmental monitoring labs and radiation research centres. Therefore, users can perform teaching, training, calibration and research-related radiation counting applications with better accuracy and convenience.

Moreover, when the GM-10 is used with a suitable end-window Geiger Muller tube and lead castle arrangement, it can support beta counting applications such as swipe sample counting, absorber studies and detector efficiency experiments. As a result, it becomes useful for both educational laboratories and professional radiation measurement setups.

Product Description

The GM Counter GM-10 helps users measure radiation counts using a Geiger Muller detector setup. It supports count-rate monitoring, CPS/CPM display, preset count mode, preset time mode and automatic data storage. Additionally, the system provides a user-friendly interface for students, teachers, researchers and laboratory technicians.

Moreover, the instrument provides variable HV/EHT output from 0 to 1500V DC, which makes it suitable for GM detector tubes operating across different voltage ranges. The system also includes external HV adjustment with internal monitoring and protection. Therefore, users can set the detector operating voltage according to the GM tube requirement.

In addition, the GM-10 supports high-speed pulse counting up to 6 MHz for service, calibration testing and electronic performance verification. It also provides 250 ns electronic resolving time / pulse-pair resolution, which helps in accurate pulse counting performance.

Furthermore, the 20×2 LCD display shows counts, HV/EHT status, CPS/CPM and system messages. It also shows live radiation activity in bar graph form, similar to a survey meter response display. As a result, users can observe radiation activity clearly during laboratory practicals and radiation measurement experiments.

Also, the GM-10 includes preset count mode and preset time mode. It supports up to 9,99,999 counts and preset time up to 9,99,999 seconds. Finally, the built-in non-volatile flash memory automatically stores readings after every run, while PC communication allows users to view, save, print and export logged data in CSV/Excel-compatible format.

Key Features

Firstly, the GM-10 works as a Geiger Counter Radiation Detector for laboratory radiation counting and Geiger Muller experiments.

Additionally, it supports beta and gamma radiation measurement when used with a compatible GM detector tube and accessories.

Moreover, it provides variable 0–1500V DC HV/EHT output for GM tubes operating across different voltage ranges.

Also, the instrument supports 250 ns electronic resolving time for pulse-pair resolution.

In addition, the counting electronics can process high-speed input pulses up to 6 MHz for service and calibration verification.

Furthermore, the 20×2 LCD display shows counts, CPS/CPM, HV/EHT status, live bar graph and system messages.

Therefore, users can operate the instrument in preset count mode and preset time mode for different laboratory experiments.

Also, the built-in flash memory automatically stores readings after every run, so manual saving is not required.

Finally, USB/serial PC communication and software support help users download, view, save, print and export data in CSV/Excel-compatible format.

Key Applications

Firstly, use the GM-10 for beta and gamma radiation detection in physics and nuclear science laboratories.

Additionally, use it for Geiger Muller counting experiments in educational institutions and training centres.

Moreover, health physics laboratories can use it for swipe sample counting and radiation monitoring applications.

Also, research labs can use it for GM tube testing, pulse counting and detector response studies.

In addition, calibration and service teams can verify counting electronics using calibrated pulse or frequency input.

Therefore, colleges can use this radiation meter device for nuclear physics practicals and instrumentation experiments.

Finally, buyers looking to buy Geiger counter or radiation detector online can use GM-10 for laboratory, educational and training requirements.

Nuclear Physics Experiments

The GM Counter GM-10 can support many teaching and laboratory experiments when used with suitable detector accessories and radioactive sources.

Firstly, students can study the characteristics curve of a Geiger Muller detector.

Additionally, they can verify the inverse square law for gamma radiation.

Moreover, the system can help demonstrate beta absorption using absorber sheets.

Also, users can measure the efficiency of a GM counter for beta radiation.

In addition, students can study the back-scattering factor of different materials.

Therefore, the GM-10 is useful for university physics labs, engineering institutions, ITI labs, IIT departments and radiation research centres.

Technical Specifications

Parameter	Specification
Product Name	GM Counter GM-10
Product Type	Geiger Counter Radiation Detector
G.M. Input	Negative polarity, 250 mV minimum
Resolving Time	250 ns electronic resolving time / pulse-pair resolution
High-Speed Pulse Counting	Up to 6 MHz for service/calibration testing
HV / EHT Output	Variable 0 to 1500V DC
GM Tube Compatibility	Suitable for GM tubes within 0–1500V operating range
HV Adjustment	External HV potentiometer with monitoring and protection
HV Safety Cut-Off	Automatic cut-off if HV limit exceeds user setting
Display	20×2 LCD dot-matrix display
Display Parameters	Counts, CPS/CPM, HV/EHT status and system messages
Live Indication	Radiation activity bar graph display
Modes	Preset count mode and preset time mode
Counts Capacity	Up to 9,99,999 counts
Preset Time Range	Up to 9,99,999 seconds
Data Storage	Non-volatile flash memory for up to 9,99,999 readings/sample records
Auto Save	Automatic saving after every run
Stored Data Fields	Run number, total counts, CPS/CPM, mode and HV/EHT status
Dead Time Correction	250 µs, 350 µs, 550 µs and OFF mode
Self-Test Mode	Display, keypad, memory and communication checking

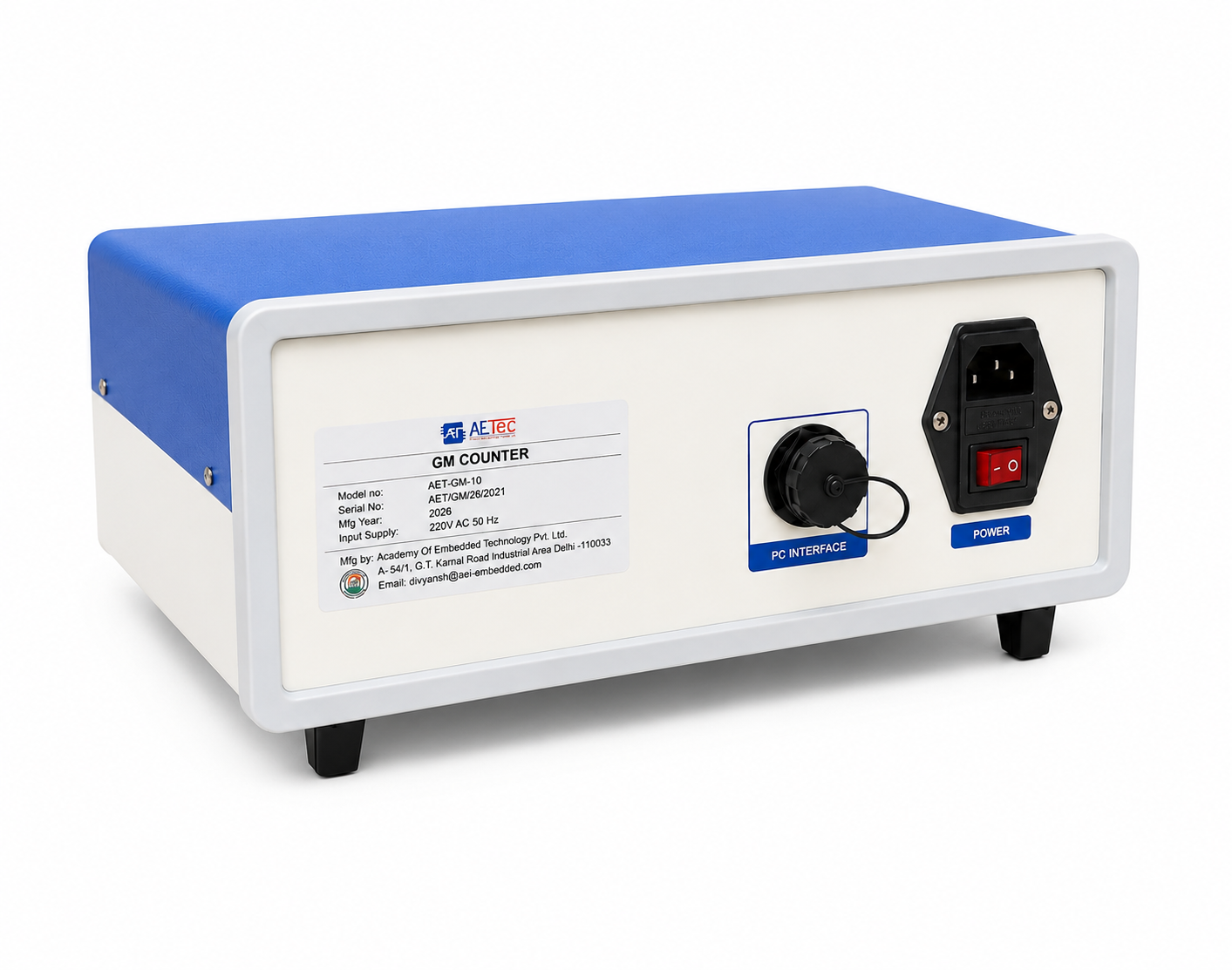

PC Communication	Built-in USB/serial communication
PC Software	View, save, print and export data in CSV/Excel-compatible format
Detector Connector	MHV connector / suitable detector connector
Power	230V AC, 50 Hz operation through suitable power arrangement

Included & Recommended Accessories

Accessory	Use
End Window G.M. Detector	Suitable for beta counting and radiation detection experiments
Lead Castle	Helps reduce background radiation during sample counting
Detector Stand	Supports proper positioning of detector, sample and absorber
Source Kit	Useful for beta and gamma radiation experiments
Aluminium Absorber Set	Used for beta absorption coefficient experiments
Sliding Bench	Helps maintain accurate source-to-detector distance
PC Data Communication Software	Used for data logging, viewing, saving and export
Experimental Booklet	Helps students perform step-by-step GM counter experiments

Typical Users

Physics and nuclear engineering departments can use the GM-10 for radiation measurement experiments.

Additionally, health physics and environmental monitoring labs can use it for count-rate monitoring and sample counting.

Moreover, R&D institutions and calibration facilities can use it for GM tube testing and performance verification.

Also, teaching and training laboratories can use this laboratory device for nuclear physics and instrumentation practicals.

Finally, GeM purchase managers, laboratory equipment companies and lab instrument suppliers can consider this product for educational and research laboratory requirements.
