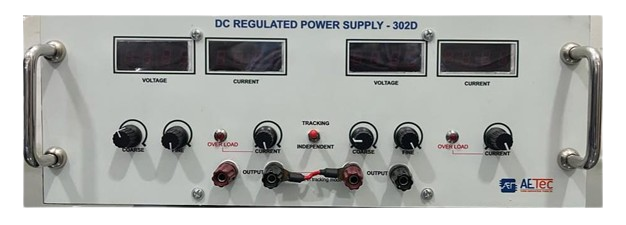

DC REGULATED POWER SUPPLY DPS-302D

AETEC DPS-302D – Dual Output DC Regulated Power Supply

The AETEC DPS-302D is a high-performance dual output DC regulated power supply. Moreover, it suits laboratories, educational experiments, and industrial applications. In addition, it provides two independent outputs of 0–30V / 2A, offering reliable constant voltage (CV) and constant current (CC) operation for a wide range of electronic testing and development tasks.

The DPS-302D features a toggle switch for independent and tracking modes. As a result, users can operate both channels separately or in synchronized tracking mode (±30V). This setup makes it ideal for analog circuit testing, op-amp experiments, and power amplifier development.

Furthermore, the unit includes four 3.5-digit LED digital panel meters, allowing precise monitoring of voltage and current for each channel. Additionally, coarse and fine voltage controls let users fine-tune power output for sensitive devices and calibration work.

Also, the DPS-302D ensures excellent load and line regulation (±0.5%), maintaining stable output under variable conditions. Its low ripple and noise guarantees clean DC supply for accurate testing of both digital and analog circuits. Moreover, overload and short-circuit protection with LED indicators provides reliable safety during continuous laboratory or R&D use.

Powered by 220V ±10%, 50Hz AC, the DPS-302D is designed for high efficiency, durability, and long service life. Therefore, it finds wide applications in engineering colleges, research laboratories, industrial testing departments, and service centers for circuit development, component testing, and instrumentation calibration.

Key Features of POWER SUPPLY DPS-302D:

• Dual Output: Variable 0–30V DC / 2A per channel (dual tracking mode)

• Operation Mode: Independent or tracking (±30V DC)

• CV/CC Functionality: Constant voltage and constant current with ±1% accuracy

• Display: Four 3.5-digit LED digital meters for voltage and current

• Load Regulation: CV – 0.5% ±5mV

• Line Regulation: CV – 0.5% ±5mV

• Protection: Overload and short-circuit protection with LED indication

• Controls: Coarse and fine voltage adjustment knobs

• Input Power: 220V ±10%, 50Hz AC

• Design: Rugged, compact, and reliable for continuous laboratory operation

Applications:

• Electronics laboratories and R&D testing

• Educational training and embedded system projects

• Component testing and calibration work

• Dual supply applications in analog and digital circuit design

• Industrial and maintenance test benches

The AETEC DPS-302D is a versatile and reliable dual output DC power supply. Moreover, it combines precision, efficiency, and safety for all demanding laboratory and industrial applications. In addition, it provides an excellent solution for professionals who require accurate and stable output for electronic testing and development.
