Introduction

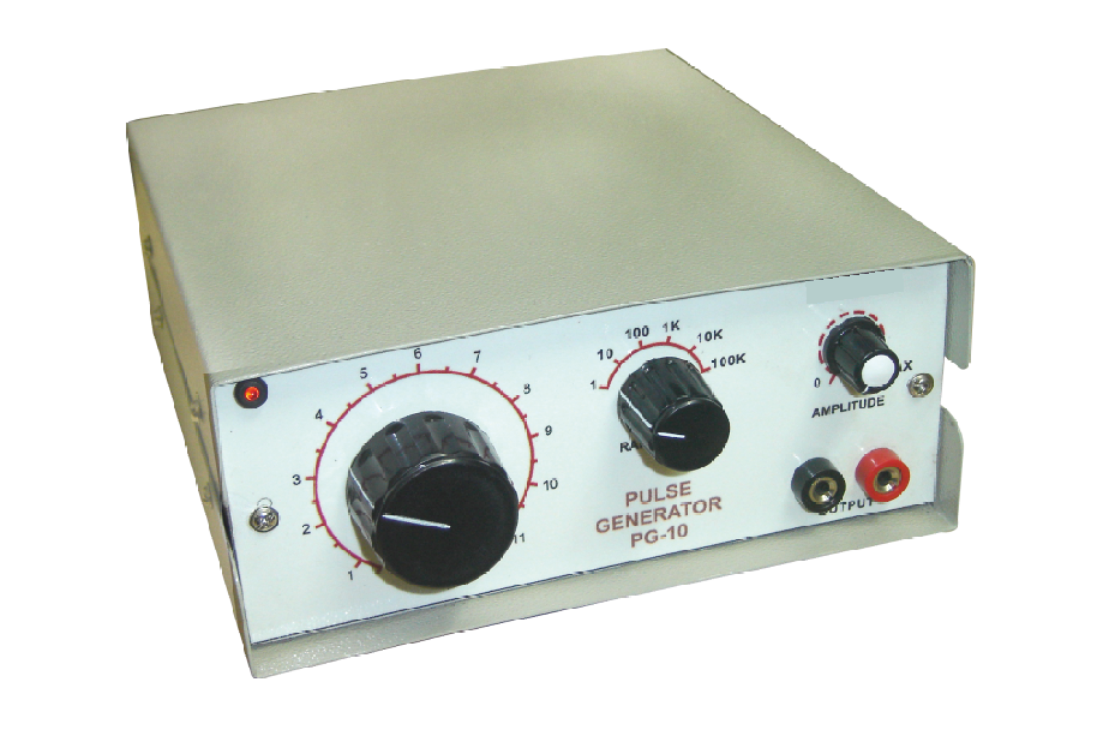

The AET PG-10 Logic Pulse Generator is a reliable laboratory instrument designed to generate a square waveform pulse train with
50% duty cycle at any desired frequency, using switchable decade ranges. With an adjustable amplitude from
100mV to 10V peak-to-peak, the PG-10 ensures low distortion, high stability, and dependable performance for various testing and R&D applications.
Pulse Generator PG-10
Advanced Square Wave Signal Source – Technical Specifications
Introduction
The Pulse Generator PG-10 is a versatile laboratory instrument designed to generate a square waveform pulse train with 50% duty cycle at any desired frequency, using switchable decade ranges. With an adjustable amplitude from 100mV to 10V peak-to-peak, the PG-10 ensures low distortion, high stability, and reliable performance for various testing and R&D applications.
Key Features
- Frequency Range: 2Hz to more than 500KHz across six decade ranges
- Waveform: Square waveform with ~50% duty cycle
- Output Amplitude: Adjustable from 100mV to 10V peak-to-peak
- Power Supply: Operates on 220V AC, 50Hz ±10%
- Accessories: Comes with Banana Plug and Crocodile Clip connecting lead
Working Principle
Technical Specifications
| Parameter | Specification |
|---|---|
| Frequency Range | 2Hz to more than 500KHz in six decade ranges |
| Waveform | Square Waveform with Duty Cycle ~50% |
| Output Amplitude | 100mV – 10V peak-to-peak, variable |
| Power Supply | 220 Volts / 50Hz, ±10% |
| Accessories | Connecting Lead with Banana Plug and Crocodile Clip |
