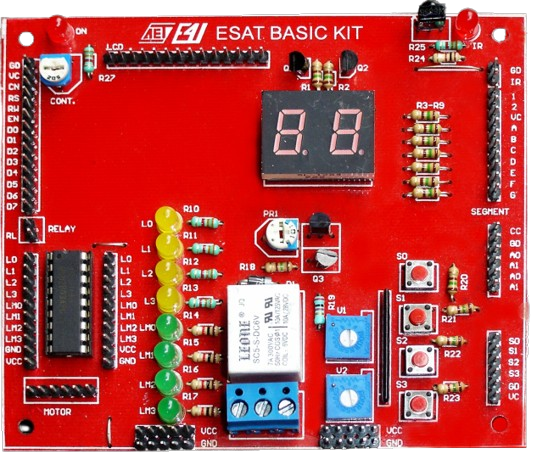

With this article we launch the most basic tools which is used
very commonly in our labs. It has almost basic peripherals for
learning Embedded Systems.
Features
*Two Digit Seven Segment Display.
*Alphanumeric LCD.
*IR receiver for remote contro*application.
*Thermistor : Constant current source variable (10 mA).
*Digita*Buffer : Stepper Motor, LED control.
*5V Relay Contro*for HVAC Application.
*Analog Potentiometers X 2.
*Toggle switches X 4.
You can make severa*Industria*applications using the above kit.
1). Temperature controller.
2). Frequency counter.
3). Seven Segment based temperature indicator.
4). Remote controlled temperature controller.
5). Stop Clock.
6). Timer Controller.
7). Timer and Time based Oven control.
8). Event Counter.
