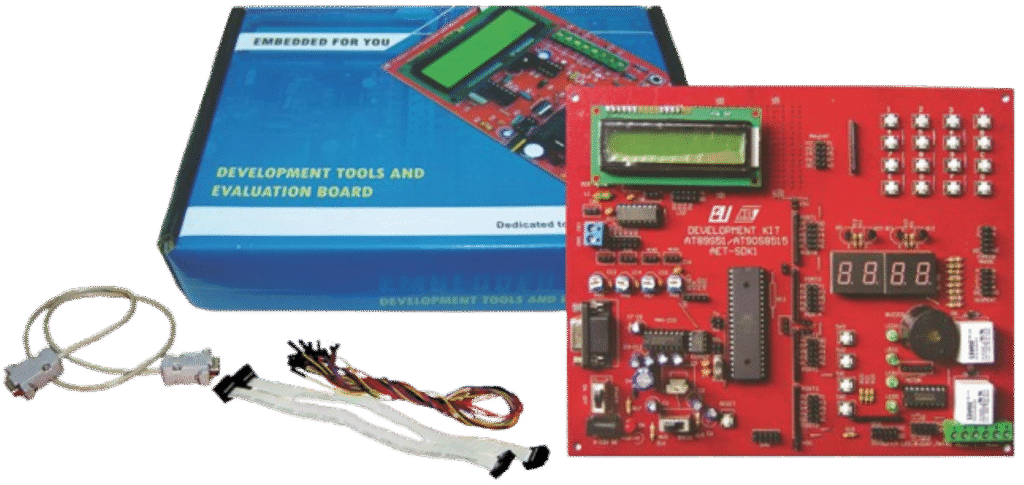

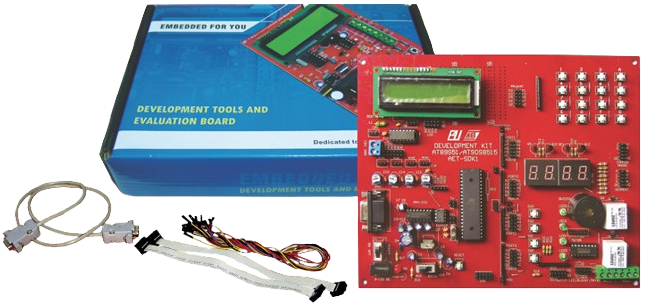

Complete development system for the AT89S51 / AT90S8515 Flash Microcontroller. It has been designed to give designers a quick start for developing, prototyping and testing of various applications.
Features :
- 16 X 2 LCD connector (4-bit interface) Alphanumeric.
- Four 7 Segment LED display.
- 4 x 4 Matrix keypad.
- All Microcontroller I/O Ports easily accessible through pin header connectors.
- External I2C bus provider for other I2C peripherals.
- RS-232 Interface to PC.
- I2C EEPROM using (24CXX).
- Socket for 40 pin devices.
- Six pin connector for motor control with stepper motor.
- Two 12V Relays.
- I2C Digital to Analog Converter 8 bit resolution using PCF8591.
- Crystal Frequency : 3.6864 Mhz.
- Four LEDs.
- Pulled down Switches.
- UL2003 Stepper Motor driver.
- Buzzer.
- Four Presets.
- In – System Programming (ISP) facility using external program.
- Programmed IC to test various function.
