DEVELOPMENT KIT AT89S51 / AT90S8515 - Complete development system for the AT89S51 / AT90S8515 Flash Microcontroller. It has been designed to give designers a quick start for developing, prototyping and testing of various applications.Features :16 X 2 LCD connector (4-bit interface) Alphanumeric.Four 7 Segment LED display.4 x 4 Matrix keypad.All Microcontroller I/O Ports easily accessible through pin header connectors.External I2C bus provider for other I2C peripherals.RS-232 Interface to PC.I2C EEPROM using (24CXX).Socket for 40 pin devices.Six pin connector for motor control with stepper motor.Two 12V Relays.I2C Digital to Analog Converter 8 bit resolution using PCF8591.Crystal Frequency : 3.6864 Mhz.Four LEDs.Pulled down Switches.UL2003 Stepper Motor driver.Buzzer.Four Presets.In - System Programming (ISP) facility using external program.Programmed IC to test various function. Read More →

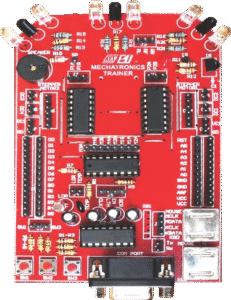

MECHATRONIC TRAINER KIT Learn to Make a Robot Today - A robot can be defined as a programmable, self - controlled device consisting of electronic, electrical, or mechanical units. A robot is a mechanical intelligent agent which reacts to its environment and can perform tasks on its own, or with guidance. In practice a robot is an electro - mechanical machine which is guided by programmable & self - controlled computers and electronic programming. A Robot can be considered to have five basic things which are similar to as seen in human beings. Specifications Hardware FeaturesPS2 Mouse & Keyboard control.Working with Stepper & DC motors using LM293D H bridge driver.LDR sensor for light detection.Infrared obstacle detection.MAX232 for Serial Interface.SwitchesSerial to paralleled buffer.IR remote control. Operating Features2 Axis Stepper Motor control or 4 Axis DC Motor controlSimultaneous movement of motor. Motor direction, speed and step operations are easily controllable though PS2 mouse/keyboard interface.Keypad of 3 keys is provided to enter control commands without computer.USB interface is provided for programming the trainer/robotic assembly as per requirement. Light & Temperature sensors are provided to configure the robotic assembly for over temperature and over light conditions.RS-232 Interface is provided.Infrared Optical sensors are provided for automatic control of robotic assembly as a intelligent vehicle.Buzzer is provided to keep indication of any alarm condition.IR remote control option is provided to control the robotic motion using IR remote. Read More →
ESAT BASIC KIT Multipurpose Evaluation Board for Development - With this article we launch the most basic tools which is usedvery commonly in our labs. It has almost basic peripherals forlearning Embedded Systems.Features*Two Digit Seven Segment Display.*Alphanumeric LCD.*IR receiver for remote contro*application.*Thermistor : Constant current source variable (10 mA).*Digita*Buffer : Stepper Motor, LED control.*5V Relay Contro*for HVAC Application.*Analog Potentiometers X 2.*Toggle switches X 4.You can make severa*Industria*applications using the above kit.1). Temperature controller.2). Frequency counter.3). Seven Segment based temperature indicator.4). Remote controlled temperature controller.5). Stop Clock.6). Timer Controller.7). Timer and Time based Oven control.8). Event Counter.INTERFACING A KEYBOARD - ( coming soon) INTERFACING A STEPPER MOTOR - (coming soon) INTERFACING AN LCD (LIQUID CRYSTAL DISPLAY) - (coming soon) Hardware Description of ESAT Basic Kit - (Part 1) - (coming soon) Read More →
